1A-80A Automotive Thermal Overload Protector Switch Motor Overcurrent Circuit Breaker

Name: 1A80A Automotive Thermal Overload Protector Switch Motor Overcurrent Circuit Breaker
Brand: HCET
Price: 1 USD

Wholesale 1A-80A Automotive Thermal Overload Protector Switch Motor Overcurrent Circuit Breaker from china suppliers

Brand Name : HCET

Model Number : HCET-T

Certification : ROHS

Place of Origin : China

MOQ : 1000

Price : please contact us

Payment Terms : T/T

Supply Ability : 10000000 pcs per month

Delivery Time : 5-7 work days

Packaging Details : 20000 pcs per carton

Product name : HCET-T motor thermal protector

Material : PBT case

Temperature range : 30~180℃

Tolerance : ±8℃,±5℃

Voltage : 30V DC / 250V AC

Current : Customizable

Application : Dumper motors

Contact Now

HCET-T 1-80A Automotive Thermal Overload Protector High Current Motor Circuit Breaker with Temperature Control for Dumper motors

The HCET-T Series Intelligent Thermal Motor Protector delivers precision protection for automotive and industrial applications. Engineered with high-temperature resistant polymer housing, this overload protector provides dual safeguards against both thermal runaway (60°C-180°C adjustable) and current overloads (1-80A DC/30-250V AC).
Ideal for critical vehicle systems including oil pump motors, wiper mechanisms, and tipper truck tarpaulin drives, its fast-acting bimetal trip mechanism (4-10s response time) prevents motor burnout in overload/stall conditions. With RoHS-compliant materials, this compact protector (dimensions customizable) ensures reliable operation in harsh automotive environments.

Product feature:

Dual Protection Technology
Thermal Cutoff: 5℃ precision (±5℃ tolerance) across 60-180℃ range
Current Limiting: Adjustable trip points 1-80A DC / 1-60A AC
Automotive-Grade Reliability
10,000+ cycle durability
Vibration resistant up to 15G
Smart Form Factor
30% smaller than conventional overload protectors
Multiple terminal options

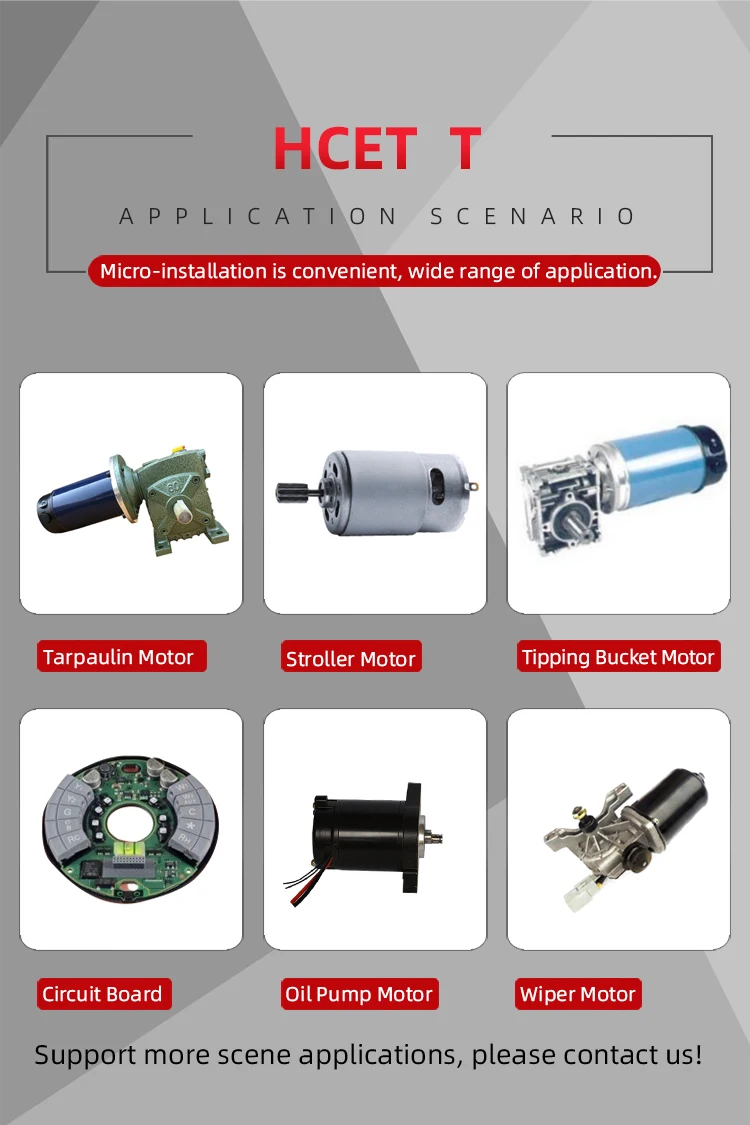

Cross-Industry Applications
Vehicle Systems: EV cooling fans, power window motors
Industrial: Conveyor belt motors, HVAC blowers
Consumer: Electric wheelchair drives, power tools

Electrical Characteristics:

60℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±5°C, ±10℃ Temperature Tolerance	1A~80A The overload current tripping range can be customized according to customer's requirements.

1~80amps/15 volts DC 1~60amps/30 volts DC

1~60amps/250 volts AC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

1A-80A Automotive Thermal Overload Protector Switch Motor Overcurrent Circuit Breaker

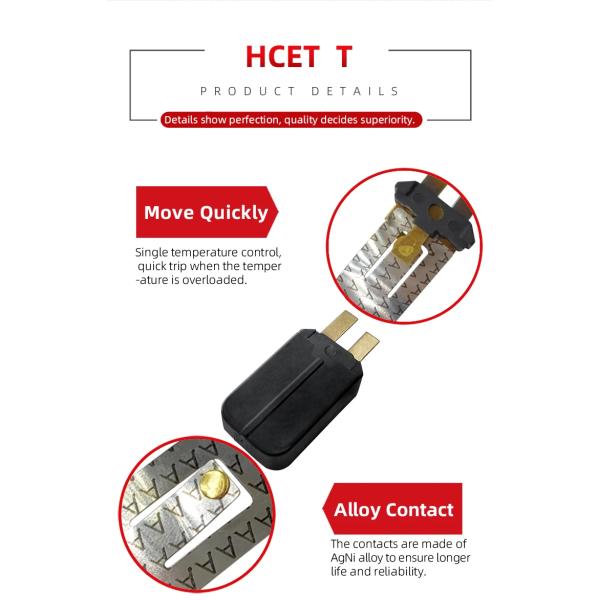

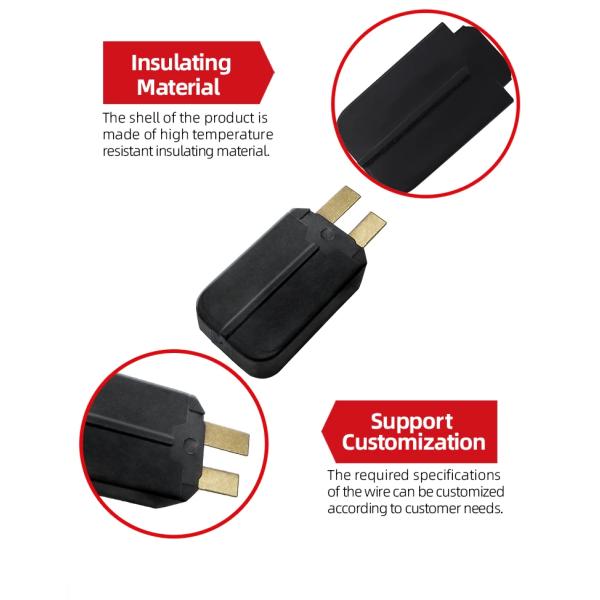

Product detail

1A-80A Automotive Thermal Overload Protector Switch Motor Overcurrent Circuit Breaker

Application

1A-80A Automotive Thermal Overload Protector Switch Motor Overcurrent Circuit Breaker
